ASP.NET Core MVC

Add authentication for ASP.NET app with Authgear

In this guide, you will learn how to add authentication features with Authgear by implementing an OpenID Connect flow, then retrieving OAuth tokens, to call APIs. View implementation on GitHub.

Learning objectives

You will learn the following throughout the article:

  • How to add user login, sign-up, and logout to ASP.NET Core Applications.

  • How to use the ASP.NET Core Authorization Middleware to protect ASP.NET Core application routes.

Add authentication to ASP.NET Core App

Prerequisites

Before you get started, you will need the following:

  • A free Authgear account. Sign up if you don't have one already.

  • .NET 7 downloaded and installed on your machine. You can also use Visual Studio and VS code to automatically detect the .NET version.

Part 1: Configure Authgear

To use Authgear services, you’ll need to have an application set up in the Authgear Dashboard. The Authgear application is where you will configure how you want to authenticate and manage your users.

Step 1: Configure an application

Use the interactive selector to create a new Authgear OIDC Client application or select an existing application that represents the project you want to integrate with.

Every application in Authgear is assigned an alphanumeric, unique client ID that your application code will use to call Authgear APIs through the OpenID Connect Client in the .NET app. Note down the Authgear ISSUER (for example, https://example-auth.authgear.cloud), CLIENT ID, CLIENT SECRET, and OpenID Token Endpoint (https://example-auth.authgear.cloud/oauth2/token) from the output. You will use these values in the next step for the client app config.

Step 2: Configure Redirect URI

A Redirect URI of your application is the URL that Authgear will redirect to after the user has authenticated in order for the OpenID Connect middleware to complete the authentication process. In our case, it will be a home page for our ASP.NET and it will run athttp://localhost:5002.

Set the following redirect URI: http://localhost:5002/signin-oidc If not set, users will not be returned to your application after they log in.

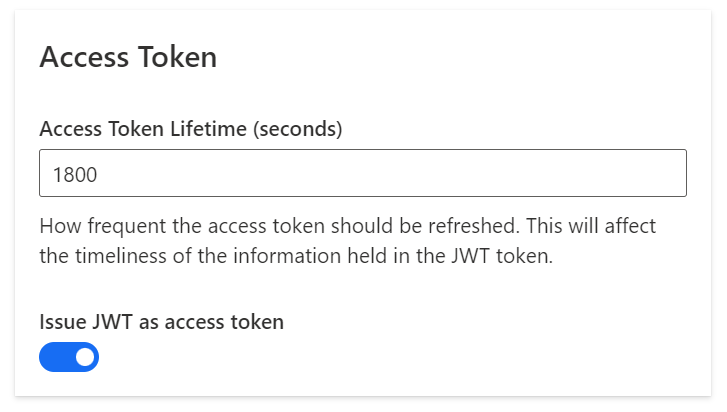

Step 3: Enable Access Token

Also, enable Issue JWT as an access token option under the Access Token section of the app configuration:

Step 4: Choose a Login method

After you create the Authgear app, you choose how users need to authenticate on the login page. From the Authentication tab, navigate to Login Methods, you can choose a login method from various options including, by email, mobile, or social, just using a username or the custom method you specify. For this demo, we choose the Email+Passwordless approach where our users are asked to register an account and log in by using their emails. They will receive a One-time password (OTP) to their emails and verify the code to use the app.

Part 2: Configure ASP.NET Core application to use Authgear

This guide will be used to provide a way for your users to log in to your ASP.NET Core application. The project source code can be found on GitHub. If you are familiar with the steps, you can skip this part and clone the code repository and run the code sample by following the README.md file there.

Step 1: Install dependencies

To integrate Authgear with ASP.NET Core you will use both the Cookie and OpenID Connect (OIDC) authentication handlers. If you are not using a sample project and are integrating Authgear into your own existing project, then please make sure that you add Microsoft.AspNetCore.Authentication.OpenIdConnect packages to your application. Run the following command in your terminal or use your editor to include the NuGet package there:

Install-Package Microsoft.AspNetCore.Authentication.OpenIdConnect

Step 2: Install and configure OpenID Connect Middleware

To enable authentication in your ASP.NET Core application, use the OpenID Connect (OIDC) middleware. Open Startup the class and in the ConfigureServices method, add the authentication services and call the AddAuthentication method. To enable cookie authentication, call the AddCookie method. Next, configure the OIDC authentication handler by adding method AddOpenIdConnect implementation. Configure other parameters, such as Issuer, ClientId, ClientSecret , and Scope. Here, is what looks like Startup.cs after you apply these changes:

public class Startup
 {

     public IWebHostEnvironment Environment { get; }
     public IConfiguration Configuration { get; }

     public Startup(IWebHostEnvironment environment, IConfiguration config)
     {
         Environment = environment;
         Configuration = config;
     }

     // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
     public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
     {
         app.UseRouting();
         app.UseAuthentication();
         app.UseAuthorization();
         app.UseEndpoints(endpoints =>
         {
             endpoints.MapRazorPages();
         });
     }

     public void ConfigureServices(IServiceCollection services)
     {
         // Prevent WS-Federation claim names being written to tokens
         JwtSecurityTokenHandler.DefaultInboundClaimTypeMap.Clear();

         services.AddAuthentication(options =>
         {
             options.DefaultScheme = CookieAuthenticationDefaults.AuthenticationScheme;
             options.DefaultChallengeScheme = OpenIdConnectDefaults.AuthenticationScheme;
         })
         .AddCookie(CookieAuthenticationDefaults.AuthenticationScheme, options =>
         {
             // Use the strongest setting in production, which also enables HTTP on developer workstations
             options.Cookie.SameSite = SameSiteMode.Strict;
         })
         .AddOpenIdConnect(options =>
         {

             // Use the same settings for temporary cookies
             options.NonceCookie.SameSite = SameSiteMode.Strict;
             options.CorrelationCookie.SameSite = SameSiteMode.Strict;

             // Set the main OpenID Connect settings
             options.Authority = Configuration.GetValue<string>("OpenIdConnect:Issuer");
             options.ClientId = Configuration.GetValue<string>("OpenIdConnect:ClientId");
             options.ClientSecret = Configuration.GetValue<string>("OpenIdConnect:ClientSecret");
             options.ResponseType = OpenIdConnectResponseType.Code;
             options.ResponseMode = OpenIdConnectResponseMode.Query;
             string scopeString = Configuration.GetValue<string>("OpenIDConnect:Scope");
             options.Scope.Clear();
             scopeString.Split(" ", StringSplitOptions.TrimEntries).ToList().ForEach(scope =>
             {
                 options.Scope.Add(scope);
             });

             // If required, override the issuer and audience used to validate ID tokens
             options.TokenValidationParameters = new TokenValidationParameters
             {
                 ValidIssuer = options.Authority,
                 ValidAudience = options.ClientId
             };

             // This example gets user information for display from the user info endpoint
             options.GetClaimsFromUserInfoEndpoint = true;

             // Handle the post logout redirect URI
             options.Events.OnRedirectToIdentityProviderForSignOut = (context) =>
             {
                 context.ProtocolMessage.PostLogoutRedirectUri = Configuration.GetValue<string>("OpenIdConnect:PostLogoutRedirectUri");
                 return Task.CompletedTask;
             };

             // Save tokens issued to encrypted cookies
             options.SaveTokens = true;

             // Set this in developer setups if the OpenID Provider uses plain HTTP
             options.RequireHttpsMetadata = false;
         });

         services.AddAuthorization();
         services.AddRazorPages();

         // Add this app's types to dependency injection
         services.AddSingleton<TokenClient>();
     }
 }

Step 3: Add Protected resource

Assume that there is a protected resource like a Razor page Protected.cshtml that is used to represent views:

@page "/protected"
@model ProtectedModel

@addTagHelper*, Microsoft.AspNetCore.Mvc.TagHelpers

<style type="text/css">
button
{
  width: 200px;
}
</style>

<h1>Protected View</h1>

<h3>
    <p>Welcome: @Model.Username</a>
    <p>Current Access Token: @Model.AccessToken</a>
    <p>Current Refresh Token: @Model.RefreshToken</a>

    <form method="post">
        <p><button value="RefreshToken" asp-page-handler="RefreshToken">Refresh Token</button></p>
        <p><button value="Logout" asp-page-handler="Logout">Logout</button></p>
    </form>
</h3>

And ProtectedModel.cs class to which Authorize the attribute is applied requires authorization.

[Authorize]
public class ProtectedModel : PageModel
{
    public string Username { get; set; }
    public string AccessToken { get; set; }
    public string RefreshToken { get; set; }

    private readonly TokenClient tokenClient;

    public ProtectedModel(TokenClient tokenClient)
    {
        this.tokenClient = tokenClient;
    }

    public async Task OnGet()
    {
        ClaimsPrincipal user = this.User;
        var givenName = user.FindFirstValue("given_name");
        var familyName = user.FindFirstValue("family_name");
        this.Username = $"{givenName} {familyName}";

        this.AccessToken = await this.tokenClient.GetAccessToken(this.HttpContext);
        this.RefreshToken = await this.tokenClient.GetRefreshToken(this.HttpContext);
    }

    public async Task<IActionResult> OnPostRefreshToken()
    {
        await this.tokenClient.RefreshAccessToken(this.HttpContext);
        this.AccessToken = await this.tokenClient.GetAccessToken(this.HttpContext);
        this.RefreshToken = await this.tokenClient.GetRefreshToken(this.HttpContext);
        return Page();
    }

    public async Task OnPostLogout()
    {
        await HttpContext.SignOutAsync(CookieAuthenticationDefaults.AuthenticationScheme);
        await HttpContext.SignOutAsync(OpenIdConnectDefaults.AuthenticationScheme);
    }
}

To see protected data, users need to go through the authentication process via Authgear.

If a user has not authenticated yet, Unauthenticated.chtml the page is rendered, an OpenID Connect redirect flow is triggered and the user needs to authenticate through the Authgear login page. See Run the Application section

After successful authentication, you should see the protected page with the following details:

Step 4: Get and Use Refresh Token

As part of the OAuth 2.0 standard, we can use the refresh token returned by the token endpoint to get a new access token. Doing so enables our application to replace an expired access token without requiring the user to repeat the entire login process.

The following code in ProtectedModel.cs is responsible for doing that:

public async Task<IActionResult> OnPostRefreshToken()
{
    await this.tokenClient.RefreshAccessToken(this.HttpContext);
    this.AccessToken = await this.tokenClient.GetAccessToken(this.HttpContext);
    this.RefreshToken = await this.tokenClient.GetRefreshToken(this.HttpContext);
    return Page();
}

Note: You must include offline_access in your OAuth 2.0 scope for the Authgear authorization server to return a refresh token.

Step 5: Logout

The Logout button on the Protected.cshtml page calls the OnPostLogout() method in ProtectedModel.cs. The method will delete the current user session and redirect to Authgear's end session endpoint for the user to complete the logout process.

The code sample below shows the implementation of the OnPostLogout() method:

public async Task OnPostLogout()
    {
        await HttpContext.SignOutAsync(CookieAuthenticationDefaults.AuthenticationScheme);
        await HttpContext.SignOutAsync(OpenIdConnectDefaults.AuthenticationScheme);
    }

Step 6: Set up and run the application

Start by cloning the project into your local machine:

git clone

Make the project directory your current working directory:

cd authgear-example-dotnet

Update the following configuration variables in the appsettings.json file with your Authgear app settings values from Part1 such as Issuer, ClientId, ClientSecret, and Authgear endpoint:

{
    "OpenIDConnect": {
        "ClientId": "{your-client-id}",
        "ClientSecret": "{your-client-secret}",
        "Issuer": "{your-authgear-app-endpoint}",
        "Scope": "openid offline_access",
        "PostLogoutRedirectUri": "<http://localhost:5002>",
        "TokenEndpoint": "{your-authgear-app-endpoint}/oauth2/token"
    },
    "Urls": "<http://localhost:5002>",
    "Logging": {
        "LogLevel": {
            "Default": "Information",
            "Microsoft": "Warning",
            "Microsoft.Hosting.Lifetime": "Information"
        }
    }
}

Execute the following command to run the ASP.NET Core web application:

dotnet build
dotnet run

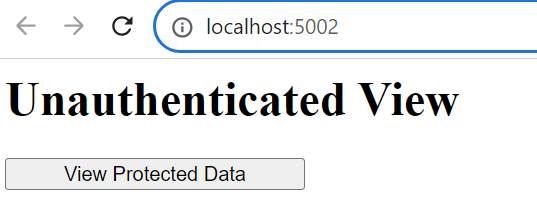

You can now visit http://localhost:5002 to access the application. When you click on the "View Protected Data" button, ASP.NET Core takes you to the Authgear’s Login page.

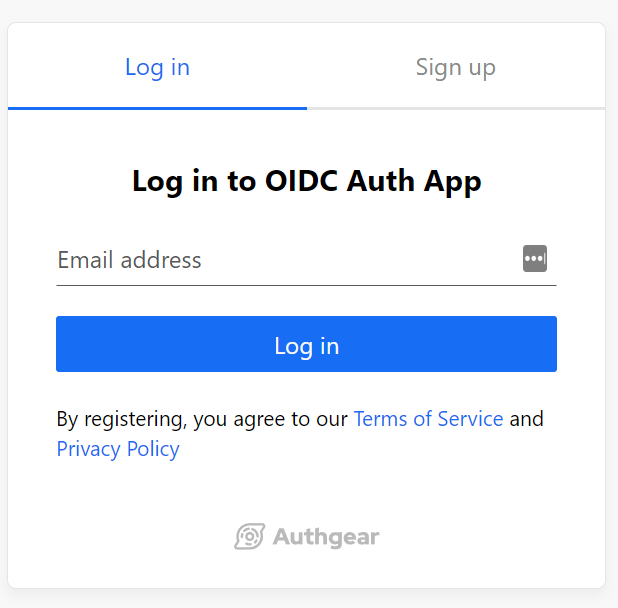

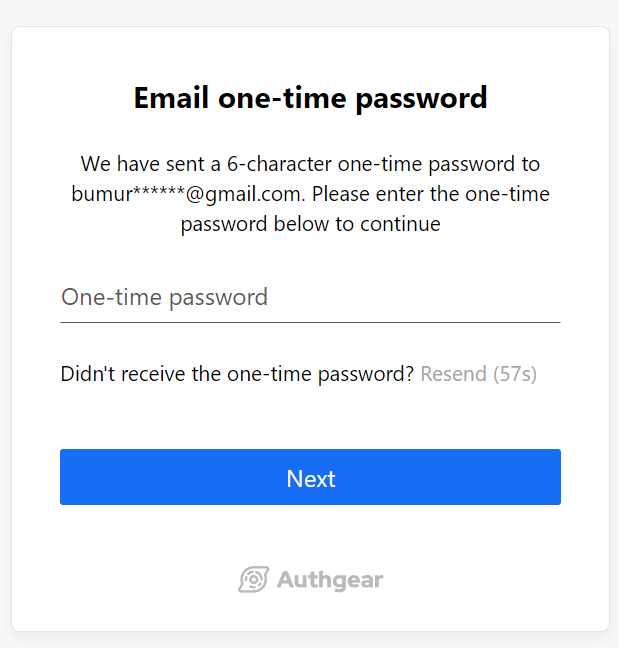

Your users can log in to your application through a page hosted by Authgear, which provides them with a secure, standards-based login experience that you can customize with your own branding and various authentication methods, such as social logins, passwordless, biometrics logins, one-time-password (OTP) with SMS/WhatsApp, and multi-factor authentication (MFA).

After you have authenticated, a protected view is rendered. The application receives an Access token that it uses to present user data on the screen, and tokens that could be used in upstream requests to some backend API, to access data on behalf of the user.

Next steps

This guide showed how to quickly implement an end-to-end OpenID Connect flow in .NET with Authgear. Only simple code is needed, after which protected views are secured with built-in UI login pages.
