Authgear Enterprise Plan offers self-managed options for customers to run the whole application on their private cloud or public cloud instances using our docker images. This is generally useful for regulated industries such as Financial, Insurance or Public Sectors which must retain the processing and storage of user data on-premises or in specific geographical area.

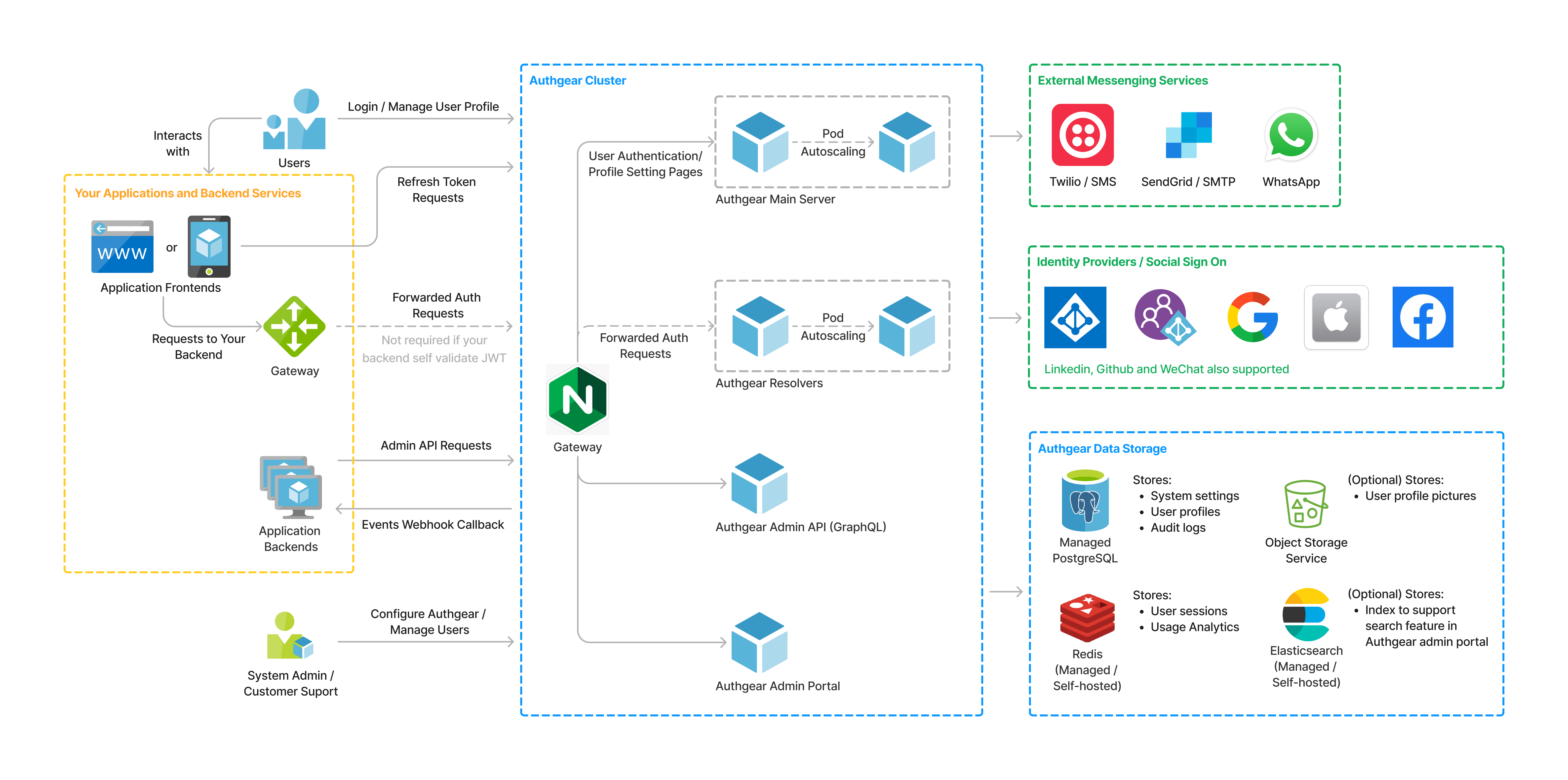

Authgear Application Architecture Diagram

Resources Reference

Component
Purposes
Minimum Requirements

Kubernetes Engine / Virtual Machines

Containers to run the applications, cache for user sessions

3 nodes with

2 vCPUs, 8 GB RAM for High Availability

PostgreSQL

Store system settings, user profiles, audit logs

2 nodes with 2 vCPUs, 8GB RAM, 500GB Storage for High Availability

Redis

Cache for user sessions, rate limits and usage analytics

RAM: Approximately 30kB per user

Optional Components

ElasticSearch

Support search in Authgear Admin Portal

S3-Compatible Object Storage

Storage of images

S3, MinIO

Network & Security

For high availability, load balancing and security

  • Web Application Firewall

  • Load Balancer

  • CDN with DDOS Protection

  • Logging and Monitoring

SMS & Email Gateway

Send email or SMS

CI/CD

For shift deployment

  • Container Registry

  • Secret Management Solutions

Deployment Options

  • Depending on Backend/API Integration approach, Authgear Resolvers is not needed if your backend self-validate user cookies or JWT.

  • It's recommended to use managed redis, postgresql and elasticsearch to reduce maintenance overhead.

  • Persistent redis is optional — the advantage of persistent redis is users can keep their session in the event of redis restart or downtime.

  • User profile image is disabled by default, if enabled an S3-Compatible Object Storage is required.

  • Elasticsearch is optional and only needed to support user search in the Authgear admin portal.

  • Please refer to Deploy with Helm chart for deployment options and details.

( to download original FigJam file)
