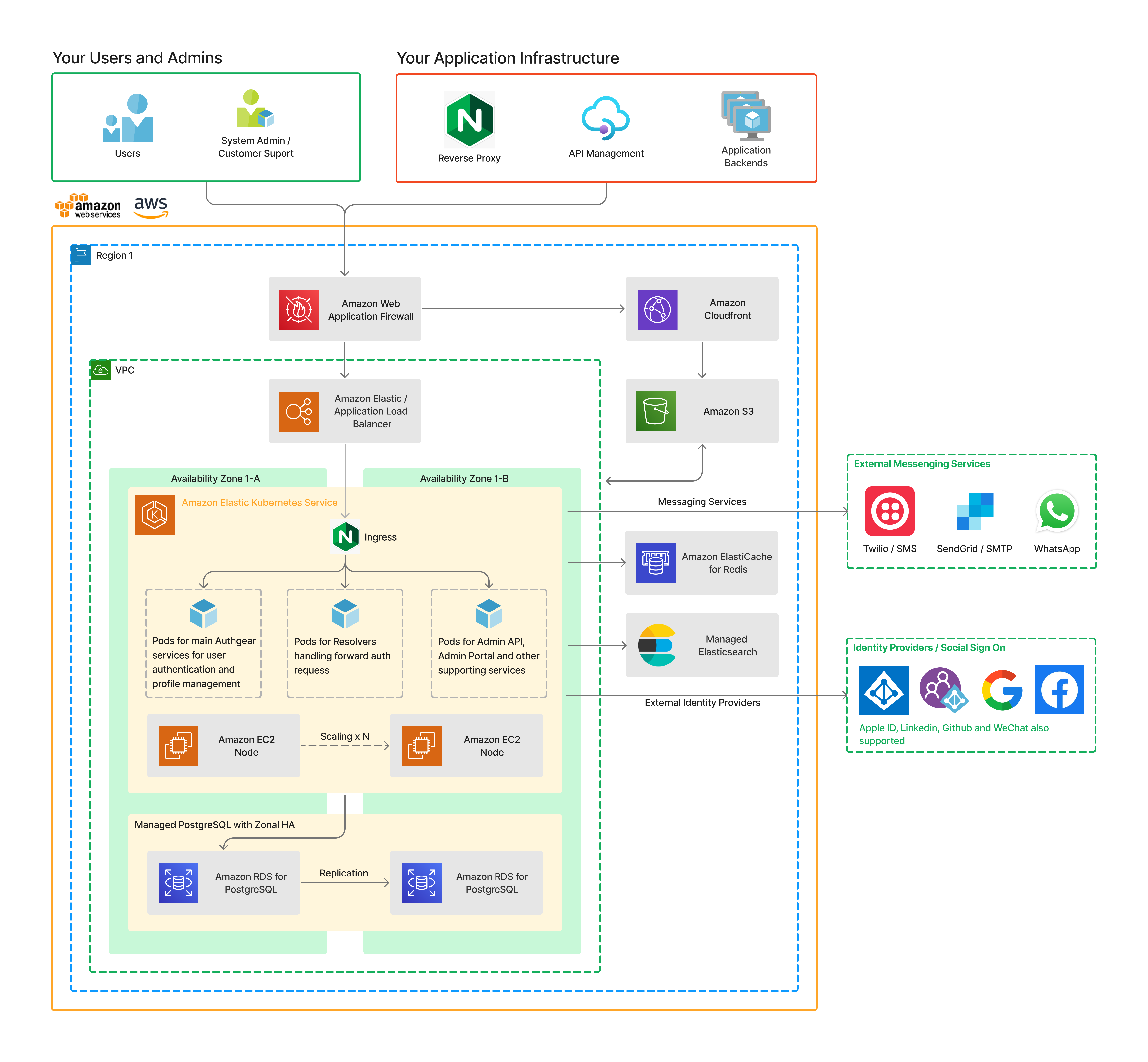

# AWS Reference Architecture

<figure><img src="https://2638622528-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MAjXpMovvVxeIY33s_K%2Fuploads%2Fgit-blob-65d1f9798fdc4bae06ade4aedfc9d15541a8ecbf%2Fauthgear-infra-aws.png?alt=media" alt=""><figcaption></figcaption></figure>

([Link](https://oursky.notion.site/Authgear-Reference-Architecture-Public-Page-099f15d621784f9299c86a6dcf55bade) to download original FigJam file)

### Cloud Resources Requirements

<table data-full-width="false"><thead><tr><th width="188">Products</th><th width="309">Purposes</th><th>Suggested Specification</th></tr></thead><tbody><tr><td>Amazon Elastic Kubernetes Services</td><td>Pods to run the applications, cache for user sessions</td><td>m5.large (2 vCPUs, 8GiB RAM)<br>x 3 minimum for k8s</td></tr><tr><td>Amazon RDS for PostgreSQL</td><td>Store system settings, user profiles, audit logs</td><td>db.m5.large (2 vCPUs, 8GiB RAM)<br>x 2 for high availability</td></tr><tr><td>Amazon ElastiCache for Redis</td><td>Store user sessions and usage analytics</td><td>Require approximately 30kB per user. Please refer to <a data-mention href="/deployment/helm.md">Deploy with Helm chart</a></td></tr><tr><td>(Optional Components)</td><td><p>Amazon S3:</p><ul><li>Storage of the user profile images</li></ul><p>Managed Elasticsearch:</p><ul><li>To support search in Authgear admin portal</li></ul><p>Networking:</p><ul><li>Amazon Web Application Firewall</li><li>Amazon Application / Elastic Load Balancer</li><li>Amazon Cloudfront (CDN)</li></ul><p>CI/CD</p><ul><li>Container registry</li><li>Secret management</li></ul><p>Logging Monitoring tools</p></td><td>N/A</td></tr></tbody></table>


---
